青州's Question
Chemistry
Posted 7 months ago

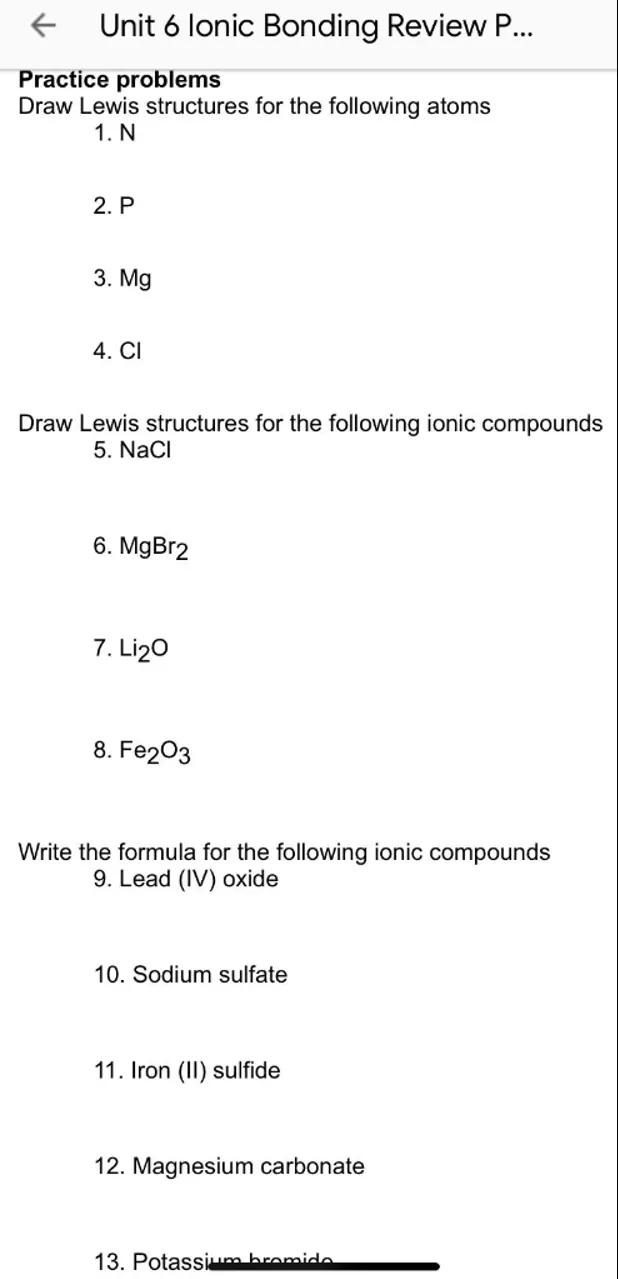

Unit 6 lonic Bonding Review P...
Practice problems
Draw Lewis structures for the following atoms
1. N\mathrm{N}
2. P\mathrm{P}
3. Mg\mathrm{Mg}
4. Cl\mathrm{Cl}

Draw Lewis structures for the following ionic compounds
5. NaCl\mathrm{NaCl}
6. MgBr2\mathrm{MgBr}_{2}
7. Li2O\mathrm{Li}_{2} \mathrm{O}
8. Fe2O3\mathrm{Fe}_{2} \mathrm{O}_{3}

Write the formula for the following ionic compounds
9. Lead (IV) oxide
10. Sodium sulfate
11. Iron (II) sulfide
12. Magnesium carbonate
13. Potassium hromidn
Sign in to unlock the answer
Answer from Sia
Posted 7 months ago
Solution
1
Draw Lewis structures for the following atoms: - Nitrogen ($\mathrm{N}$): Nitrogen has 5 valence electrons. The Lewis structure is represented as N\mathrm{N} with 5 dots around it. - Phosphorus ($\mathrm{P}$): Phosphorus has 5 valence electrons. The Lewis structure is represented as P\mathrm{P} with 5 dots around it. - Magnesium ($\mathrm{Mg}$): Magnesium has 2 valence electrons. The Lewis structure is represented as Mg\mathrm{Mg} with 2 dots around it. - Chlorine ($\mathrm{Cl}$): Chlorine has 7 valence electrons. The Lewis structure is represented as Cl\mathrm{Cl} with 7 dots around it
2
Draw Lewis structures for the following ionic compounds: - Sodium chloride ($\mathrm{NaCl}$): Sodium loses one electron to form Na+\mathrm{Na}^+ and chlorine gains one electron to form Cl−\mathrm{Cl}^-. The Lewis structure is Na+[Cl]−\mathrm{Na}^+ [\mathrm{Cl}]^-. - Magnesium bromide ($\mathrm{MgBr}_2$): Magnesium loses two electrons to form Mg2+\mathrm{Mg}^{2+} and each bromine gains one electron to form Br−\mathrm{Br}^-. The Lewis structure is Mg2+[Br]−[Br]−\mathrm{Mg}^{2+} [\mathrm{Br}]^- [\mathrm{Br}]^-. - Lithium oxide ($\mathrm{Li}_2\mathrm{O}$): Each lithium loses one electron to form Li+\mathrm{Li}^+ and oxygen gains two electrons to form O2−\mathrm{O}^{2-}. The Lewis structure is 2Li+[O]2−2\mathrm{Li}^+ [\mathrm{O}]^{2-}. - Iron(III) oxide ($\mathrm{Fe}_2\mathrm{O}_3$): Each iron loses three electrons to form Fe3+\mathrm{Fe}^{3+} and each oxygen gains two electrons to form O2−\mathrm{O}^{2-}. The Lewis structure is 2Fe3+3[O]2−2\mathrm{Fe}^{3+} 3[\mathrm{O}]^{2-}
3
Write the formula for the following ionic compounds: - Lead (IV) oxide: Lead (IV) has a charge of +4+4 and oxide has a charge of −2-2. The formula is PbO2\mathrm{PbO}_2. - Sodium sulfate: Sodium has a charge of +1+1 and sulfate has a charge of −2-2. The formula is Na2SO4\mathrm{Na}_2\mathrm{SO}_4. - Iron (II) sulfide: Iron (II) has a charge of +2+2 and sulfide has a charge of −2-2. The formula is FeS\mathrm{FeS}. - Magnesium carbonate: Magnesium has a charge of +2+2 and carbonate has a charge of −2-2. The formula is MgCO3\mathrm{MgCO}_3. - Potassium bromide: Potassium has a charge of +1+1 and bromide has a charge of −1-1. The formula is KBr\mathrm{KBr}
Answer
1. N\mathrm{N}: N\mathrm{N} with 5 dots 2. P\mathrm{P}: P\mathrm{P} with 5 dots 3. Mg\mathrm{Mg}: Mg\mathrm{Mg} with 2 dots 4. Cl\mathrm{Cl}: Cl\mathrm{Cl} with 7 dots 5. NaCl\mathrm{NaCl}: Na+[Cl]−\mathrm{Na}^+ [\mathrm{Cl}]^- 6. MgBr2\mathrm{MgBr}_2: Mg2+[Br]−[Br]−\mathrm{Mg}^{2+} [\mathrm{Br}]^- [\mathrm{Br}]^- 7. Li2O\mathrm{Li}_2\mathrm{O}: 2Li+[O]2−2\mathrm{Li}^+ [\mathrm{O}]^{2-} 8. Fe2O3\mathrm{Fe}_2\mathrm{O}_3: 2Fe3+3[O]2−2\mathrm{Fe}^{3+} 3[\mathrm{O}]^{2-} 9. PbO2\mathrm{PbO}_2 10. Na2SO4\mathrm{Na}_2\mathrm{SO}_4 11. FeS\mathrm{FeS} 12. MgCO3\mathrm{MgCO}_3 13. KBr\mathrm{KBr}
Key Concept
Lewis structures represent the valence electrons of atoms and ions.
Explanation
Lewis structures help visualize the bonding between atoms in a molecule and the lone pairs of electrons that may exist.
